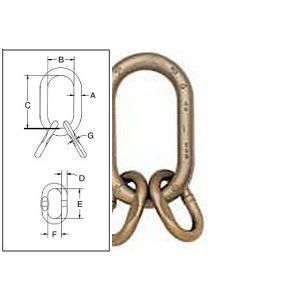

A-345 Master Link Assembly

"A"
Size
(in.)

A-345
Stock
No.

Working Load Limit
(lbs.)*

Weight Each (lbs.)

Dimensions (in.)

Based on
Grade 8 Chain
(4:1)

Based on 5:1 Design Factor

B

C

D

E

F

G

Deformation Indicator

Engineered Flat for  S-325A  (in.) - (mm)

3/4

1014734

9100

12300

2.60

2.75

5.50

.56

3.35

1.57

.30

3.50

1/4"-5/16", 8mm

1

1014752

18400

24360

6.10

3.50

7.00

.69

3.94

2.36

.33

4.50

3/8", 10mm

1-1/4

1014770

31200

36200

13.20

4.38

8.75

.88

3.94

2.36

.53

5.50

1/2", 13mm

1-1/2

1014798

47000

54300

24.20

5.25

10.50

1.13

5.91

2.76

.65

6.50

5/8", 16mm

1-3/4

1014814

73500

84900

35.60

6.00

12.00

1.25

6.30

3.54

.73

7.50

3/4", 20mm

2

1014832

88900

102600

57.30

7.00

14.00

1.50

7.09

3.94

-

9.00

No Flat
