Product Description

Crosby McKissick 418 / 419 / 404 Snatch Blocks

• Forged alloy heat treated hooks.
• Forged steel swivel tees, yokes and shackles.
• Hook and shackle assemblies on 4-1/2³ through 14³ sizes can be interchanged.
• Can be furnished with bronze bushings or roller bearings.
• Opening feature permits insertion of rope while block is suspended from gin-pole.
• 3³ thru 18³ 418 and 419 blocks have exclusive bolt retaining spring to assure no lost bolts.
• Can be furnished with S-4320 hook latch.
• Pressure lube fittings.
• 3³ “ 10³ feature dual rated wireline sheaves.
• Fatigue rated.
• 4-1/2³ and larger are RFID EQUIPPED.




•

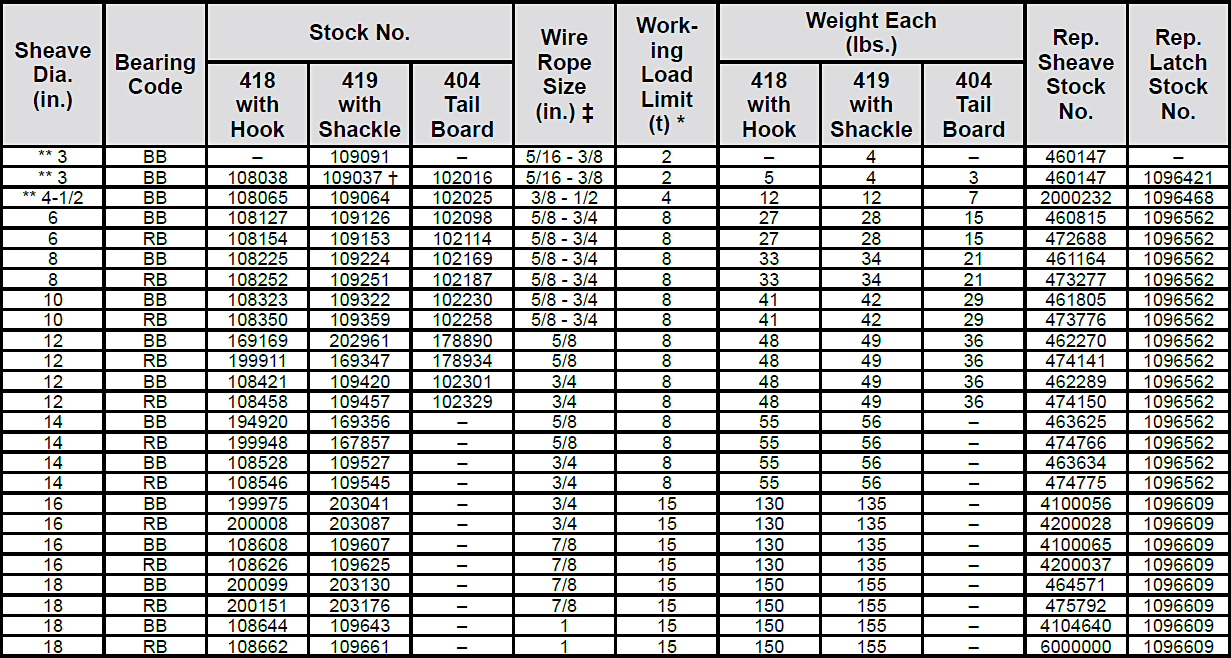

  * Ultimate Load is 4 times the Working Load Limit.

  Available in Bronze Bushed only. 3³ and 4-1/2³ have self lubricating Bronze Bushing.

  Fitted with 1-1/4³ ID Swivel Eye.

  May be furnished in other rope sizes.


  Note: When ordering, please specify: size, block number, hook or shackle, bronze bushed or roller bearing, and wire rope size.
