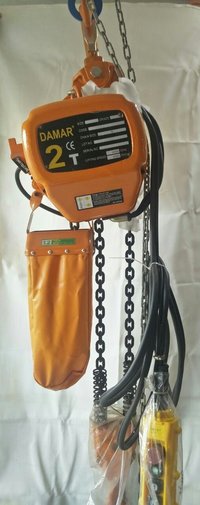

ELECTRIC CHAIN HOIST
Rotation stability, high efficiency, labour-saving.
Small size, light weight, nice appearance.
Light aluminium alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device:
It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
It is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device:
This device shall realise the instant break in case of the power dump.
It shall be light, handsome and durable.
The chain shall adopt the imported FEC80 ultra heat-treatable aluminium alloy chain.
Type WBH00501SM WBH01001SM WBH01501SM WBH02001SM WBH02002SM
Capacity(t) 0.5 1 1.5 2 2
Standard Lifting Height(m) 3
Lifting Speed(m) 6.8 6.6 8.8 6.6 3.3
Lifting Motor Power(kw) 0.75 1.5 3.0 3.0 1.5
Rotation Speed(r/min) 1440
Chain Turns 1
Chain Specification 6.3 7.1 10.0 10.0 7.1
Test Load(t) 0.625 1.25 1.875 2.5 2.5
