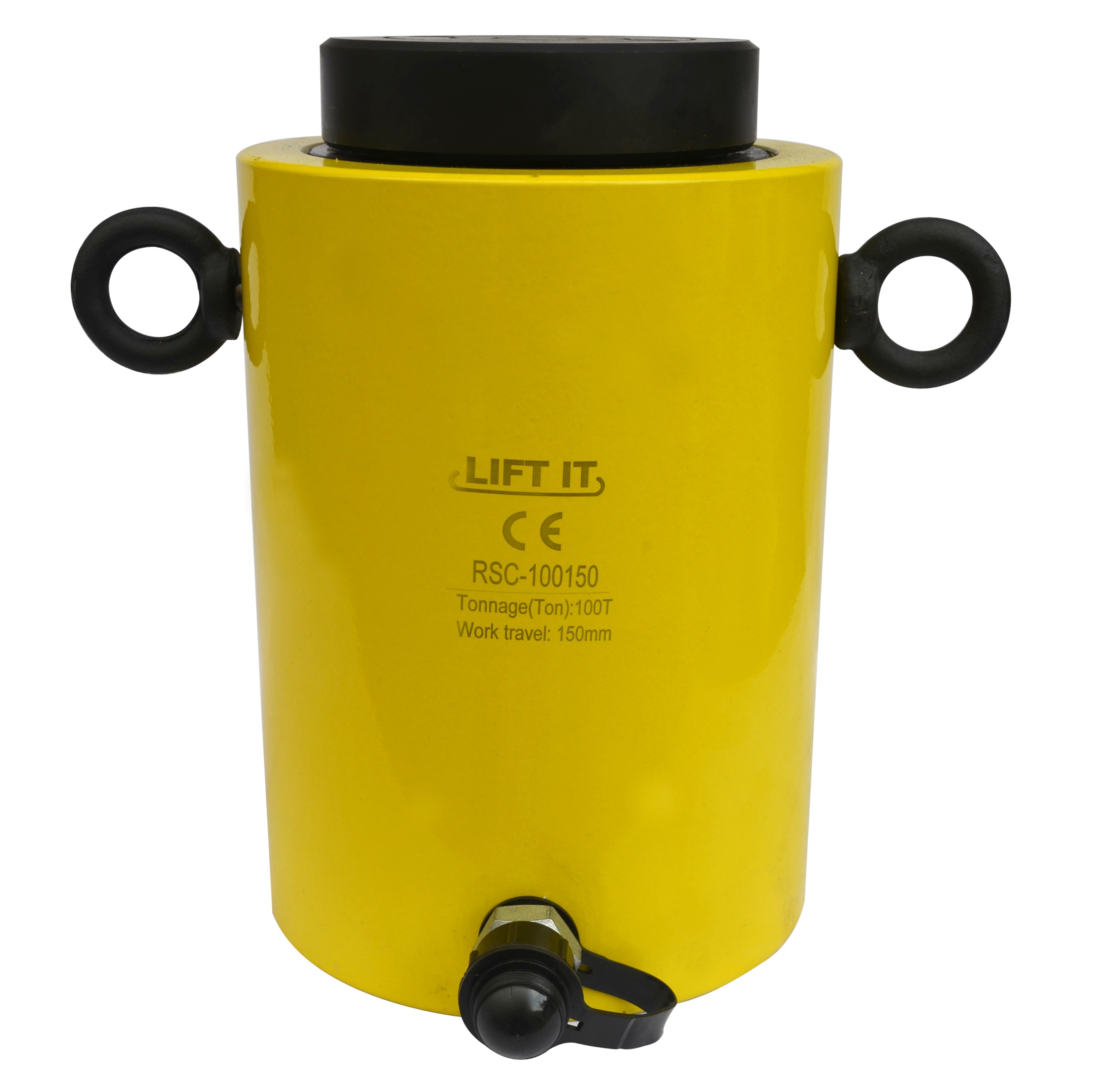

LIFTIT Single Acting Hydraulic Jack RSC 100150

Product Description

LIFTIT Single Acting Hydraulic Jack RSC 100150

Designedto effortlessly move heavy loads, this LIFTIT Single Acting Hydraulic CylinderJack has a variety of possible applications, especially in the commercial andindustrial sectors. Designed for use in all positions, this versatile tool canbe used to lift heavy items and loads, or used horizontally for pushing loadsor even keeping an object firmly in place

Technical Details :-

Load Lifting Capacity - 100 Tons

Stroke Length - 150 mm

Oil Capacity - 1.98 Ltr

Collapsed Height - 265 mm

Extended Height - 415 mm

Outside Dia - 177 mm

Weight - 52.0 Kg

Spring return enables fast plunger retraction. Surface coating resists corrosion, extends jack life, Quick Release coupling and dust cap are included on all models. There is a stop ring for piston blow out protection. Maximum sized springs speed piston return and also increases spring life. Used for long strokes Vertical & Horizontal application. The surface of the principal axis is finished with chrome plate to protect the use of longevity of the product. Hardy underlay to avoid axis break when it is overloading. Stopping ring- To protect the cylinder when the stroke gets to the top, absorb heaviness in the other side. Spring- Provide the capability of quick flexing. Cylinder wall with principal axis- They can avoid eroding and less friction by chrome plate. O-ring:- Great effect for seeking and hold longevity. Brass ring - Use high quality of brass to joint, to protect the status of overloading and absorb heaviness on the other side.
